Branin's RCOS Function No.02

I. Mathematical Expression:

$$f(X)=\frac{-1}{f_1+f_2+f_3+e}$$

where:

\(\bullet\) \(a=1, \ b=\frac{5.1}{4\pi^2}, \ c=\frac{5}{pi}, \ d=6, \ e=10, \ g=\frac{1}{8\pi}\)

\(\bullet\) \(f_1=a\left(x_2 - b x^2_1 + c x_1 - d\right)^2\)

\(\bullet\) \(f_2=e \left(1-g\right) \ cos\left(x_1\right) \cos\left(x_2\right)\)

\(\bullet\) \(f_3=\log\left(x^2_1 + x^2_2 + 1\right)\)

\(\bullet\) \(-5\leq x_1 \leq 10\) , \(0\leq x_2 \leq 15\)

\(\bullet\) \(f_{min}(X^*) = -0.179891239069905\)

\(\bullet\) \(x^*_i = (-3.196988423389338,12.526257883092258)\)

\(\bullet\) This function is called "Modified Branin's RCOS Function" in [1], while it is called "Branin's RCOS Function No.02" in [2, 3]. Also, we found that the given side constraints in [2, 3] are symmetrical, while in [1] each independent variable has its own lower and upper bounds. Moreover, the function expressions given in [2, 3] are different than that given in [1]. Based on that, we stay on the name "Branin's RCOS Function No.02" for having good indexing, but we use the detailed expression in [1] to construct this function.

II. Citation Policy:

If you publish material based on databases obtained from this repository, then, in your acknowledgments, please note the assistance you received by using this repository. This will help others to obtain the same data sets and replicate your experiments. We suggest the following pseudo-APA reference format for referring to this repository:

Ali R. Al-Roomi (2015). Unconstrained Single-Objective Benchmark Functions Repository [https://www.al-roomi.org/benchmarks/unconstrained]. Halifax, Nova Scotia, Canada: Dalhousie University, Electrical and Computer Engineering.

Here is a BiBTeX citation as well:

@MISC{Al-Roomi2015,
author = {Ali R. Al-Roomi},
title = {{Unconstrained Single-Objective Benchmark Functions Repository}},
year = {2015},
address = {Halifax, Nova Scotia, Canada},
institution = {Dalhousie University, Electrical and Computer Engineering},
url = {https://www.al-roomi.org/benchmarks/unconstrained}
}

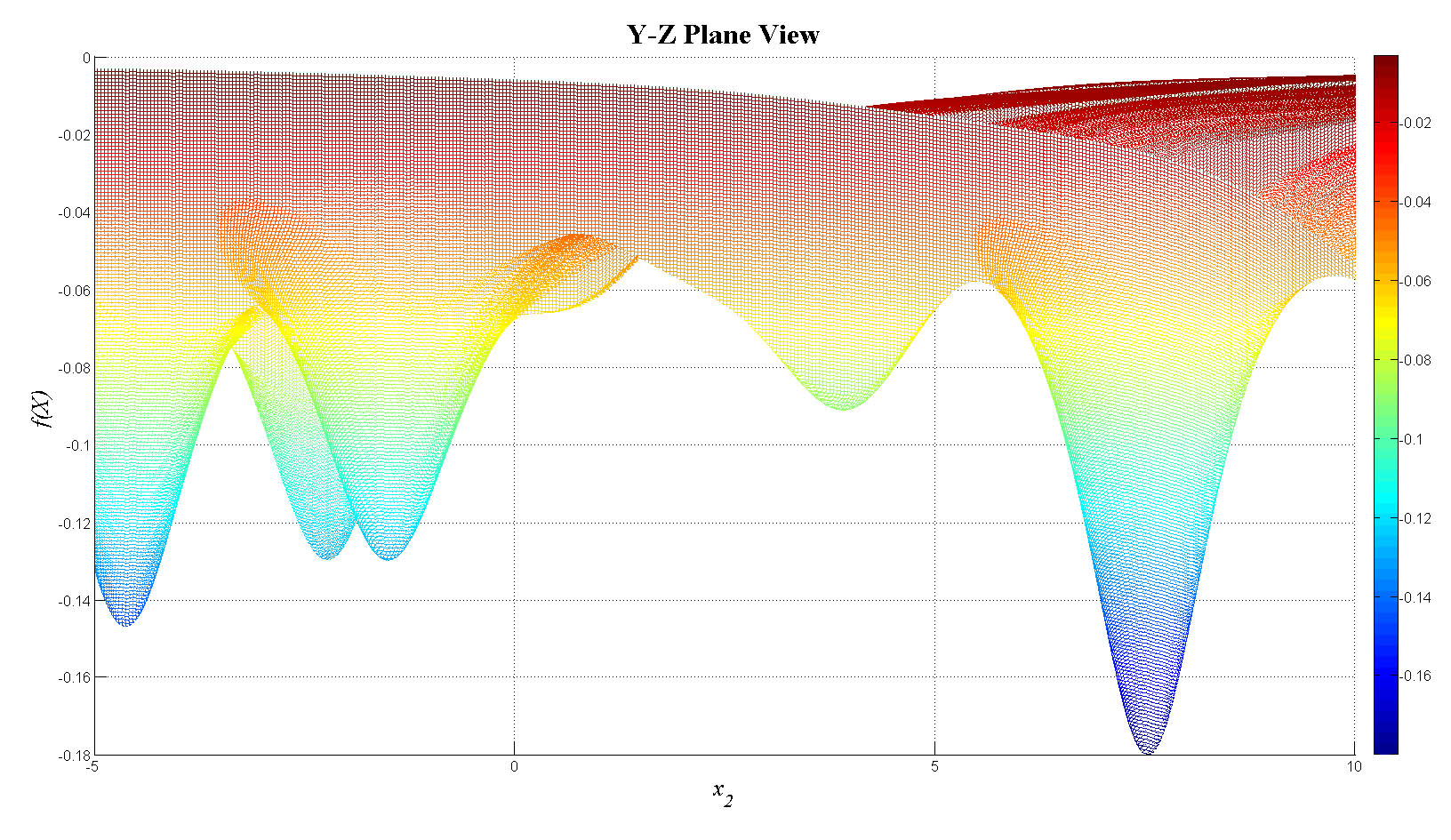

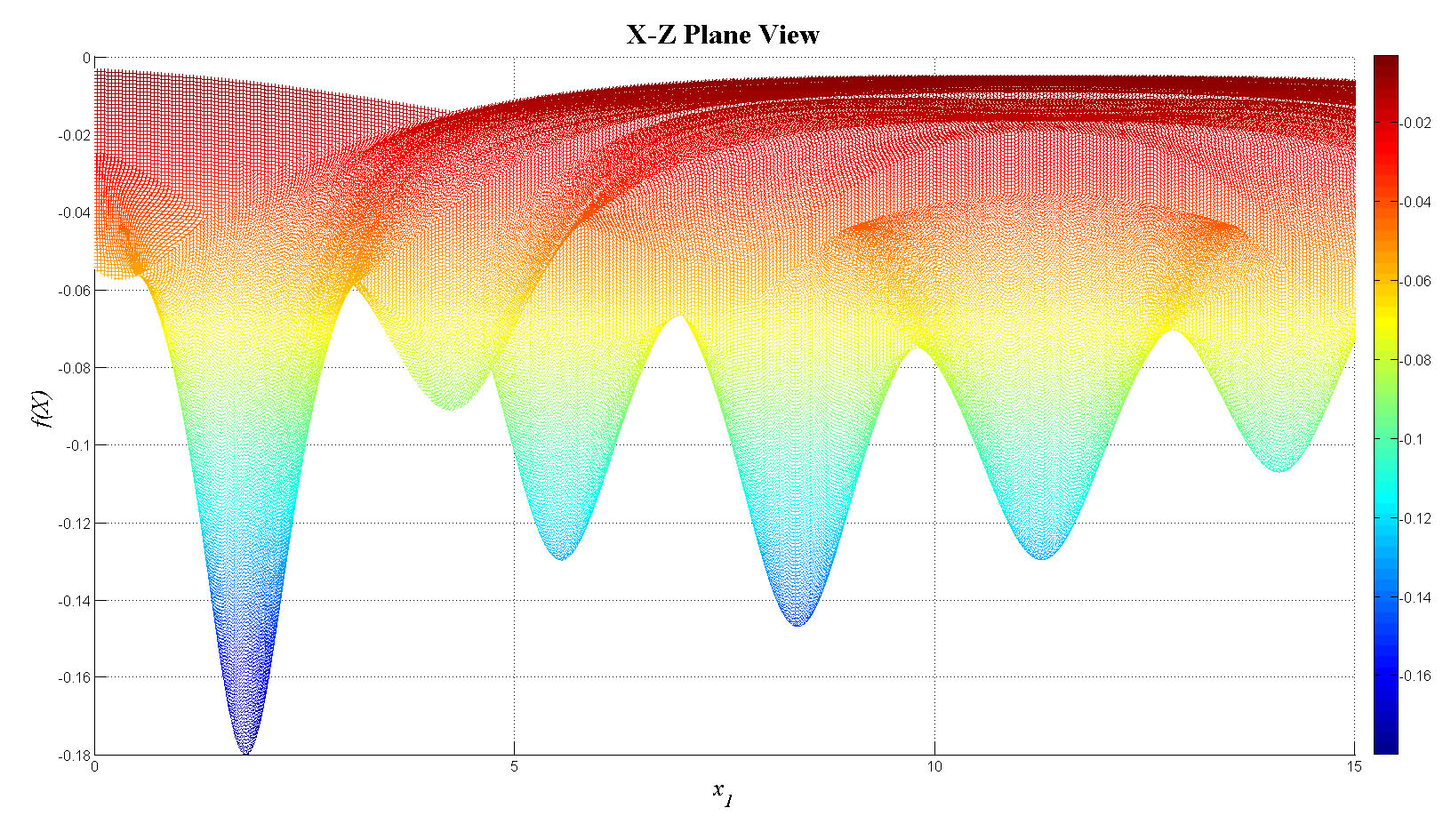

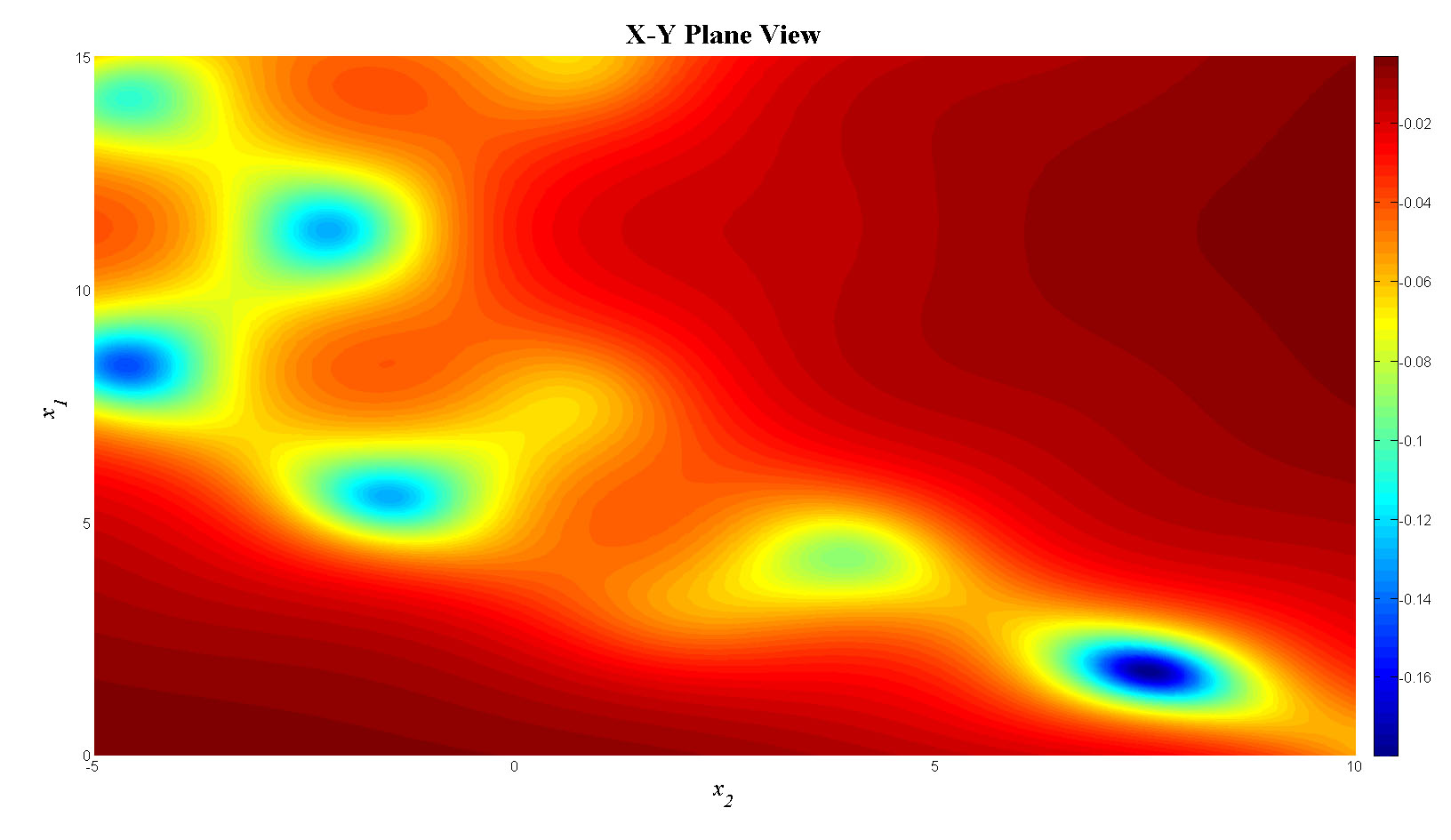

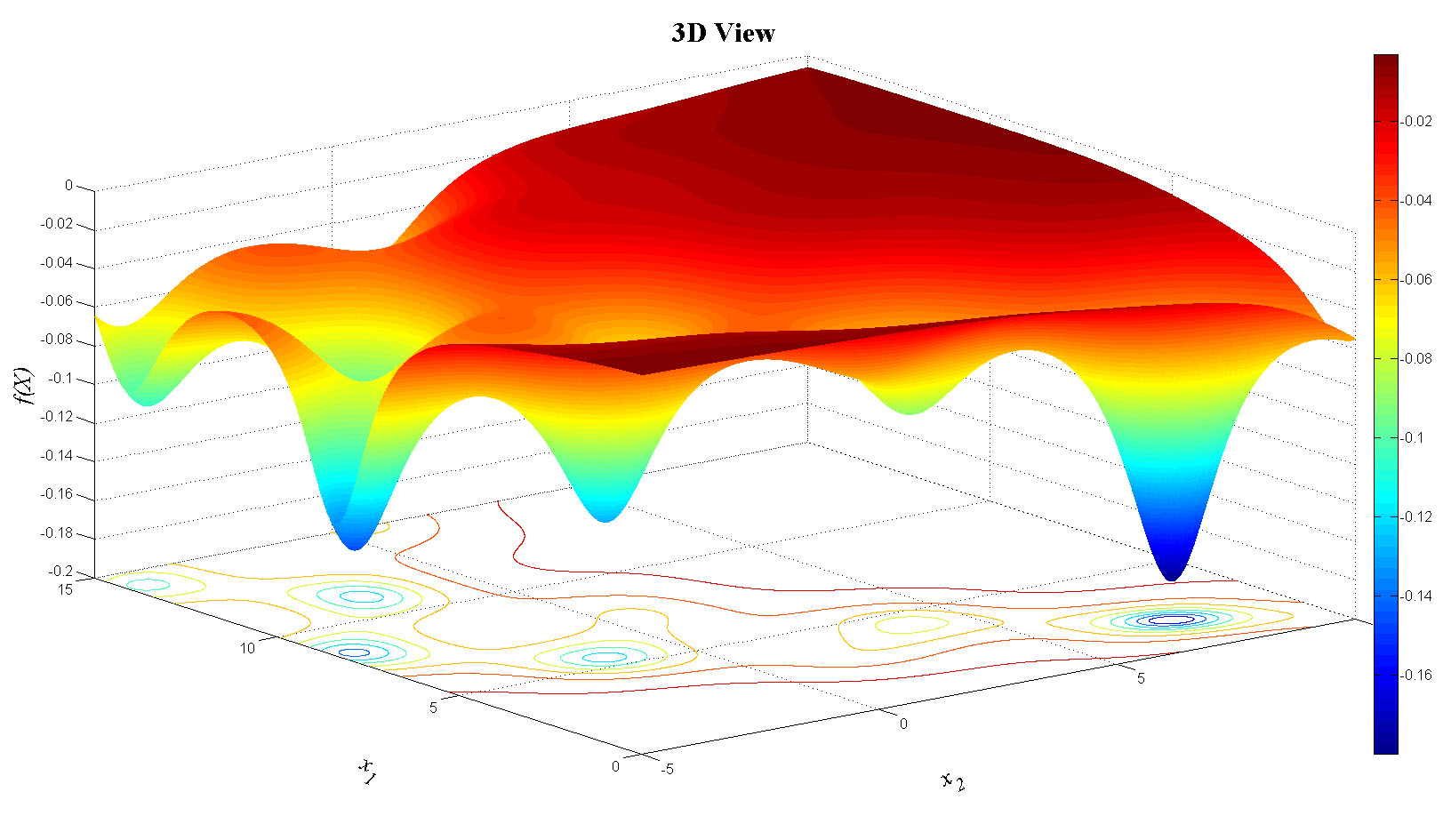

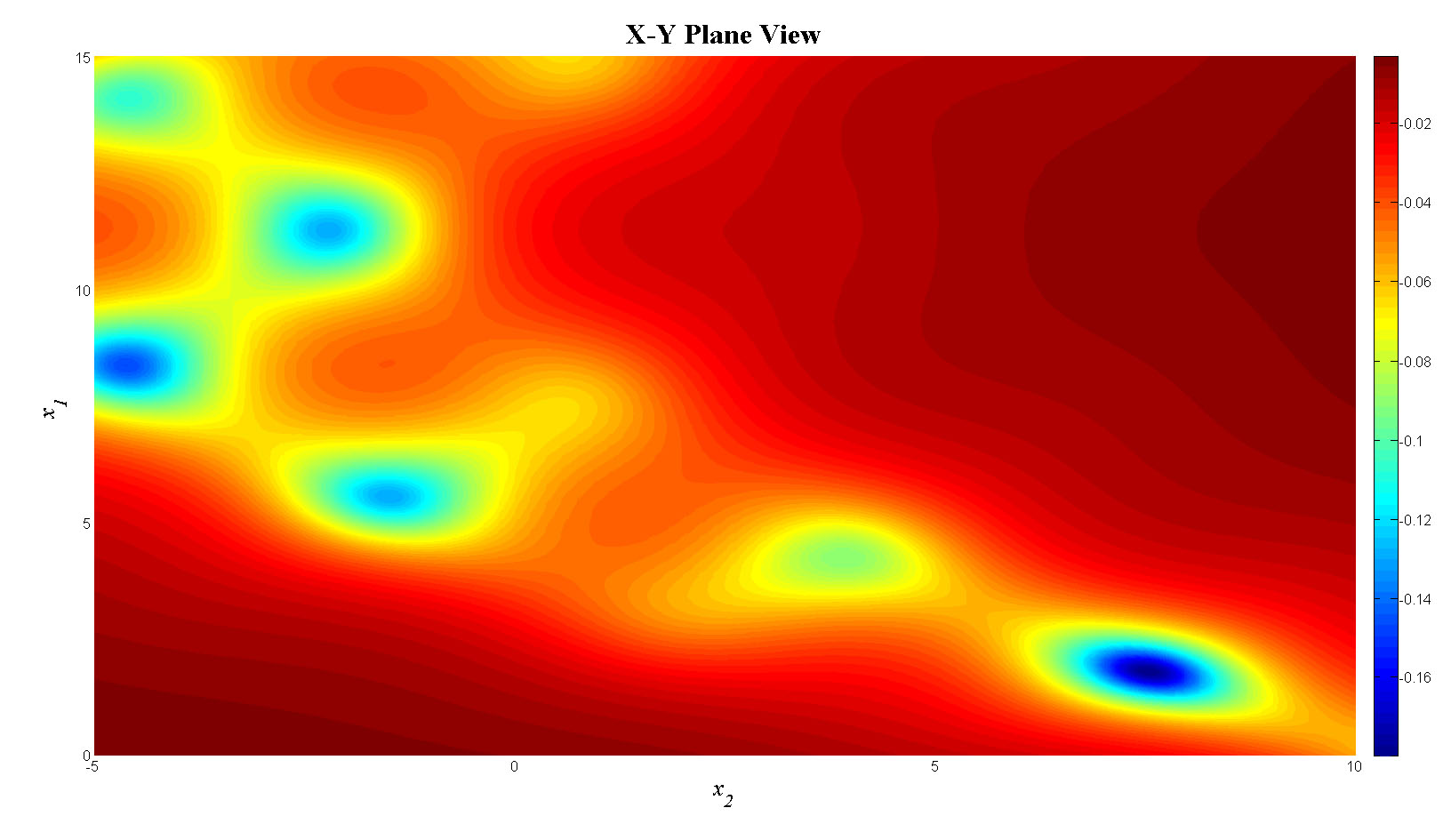

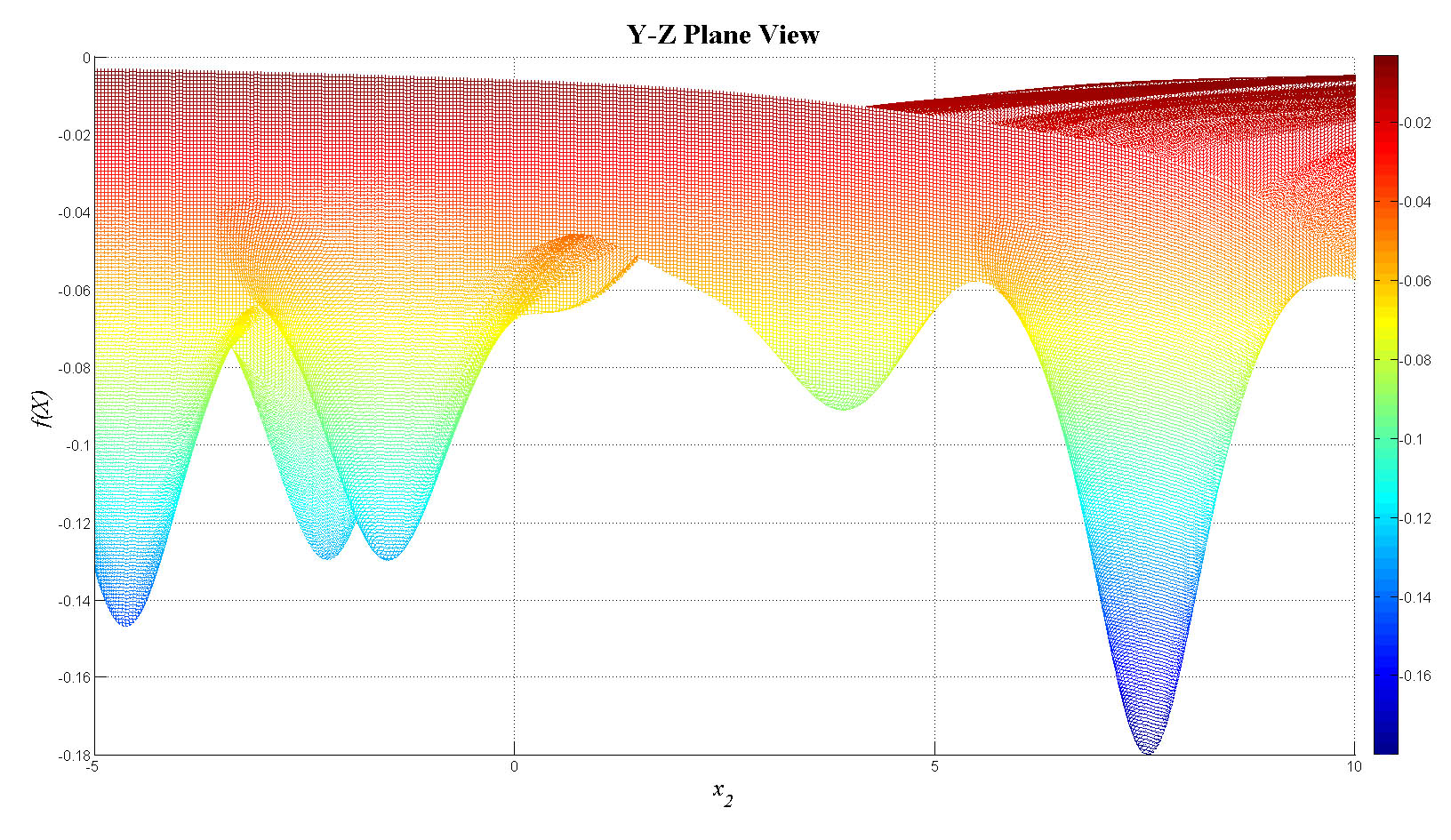

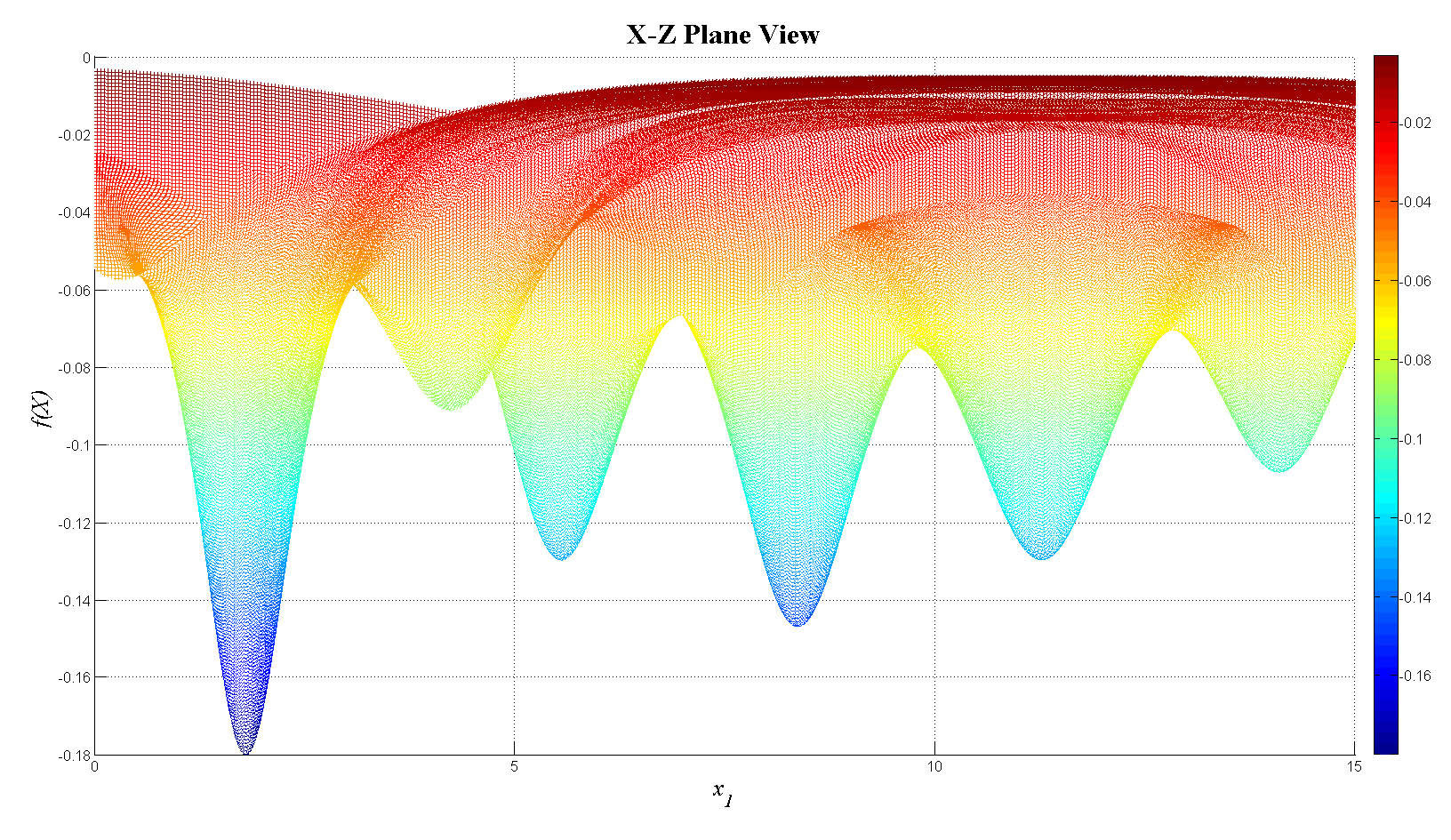

III. 2&3D-Plots:
