I. Mathematical Expression:

$$f(x)=\sin^6(5 \pi x) $$

where:

\(\bullet\) \(0 \leq x \leq 1\)

\(\bullet\) It has five global maximum: \(f_{max}(x^*)=1\)

\(\bullet\) \(x^*=\{0.1,0.3,0.5,0.7,0.9\}\)



II. Citation Policy:

If you publish material based on databases obtained from this repository, then, in your acknowledgments, please note the assistance you received by using this repository. This will help others to obtain the same data sets and replicate your experiments. We suggest the following pseudo-APA reference format for referring to this repository:

Ali R. Al-Roomi (2015). Unconstrained Single-Objective Benchmark Functions Repository [https://www.al-roomi.org/benchmarks/unconstrained]. Halifax, Nova Scotia, Canada: Dalhousie University, Electrical and Computer Engineering.

Here is a BiBTeX citation as well:

@MISC{Al-Roomi2015,
author = {Ali R. Al-Roomi},
title = {{Unconstrained Single-Objective Benchmark Functions Repository}},
year = {2015},
address = {Halifax, Nova Scotia, Canada},
institution = {Dalhousie University, Electrical and Computer Engineering},
url = {https://www.al-roomi.org/benchmarks/unconstrained}
}

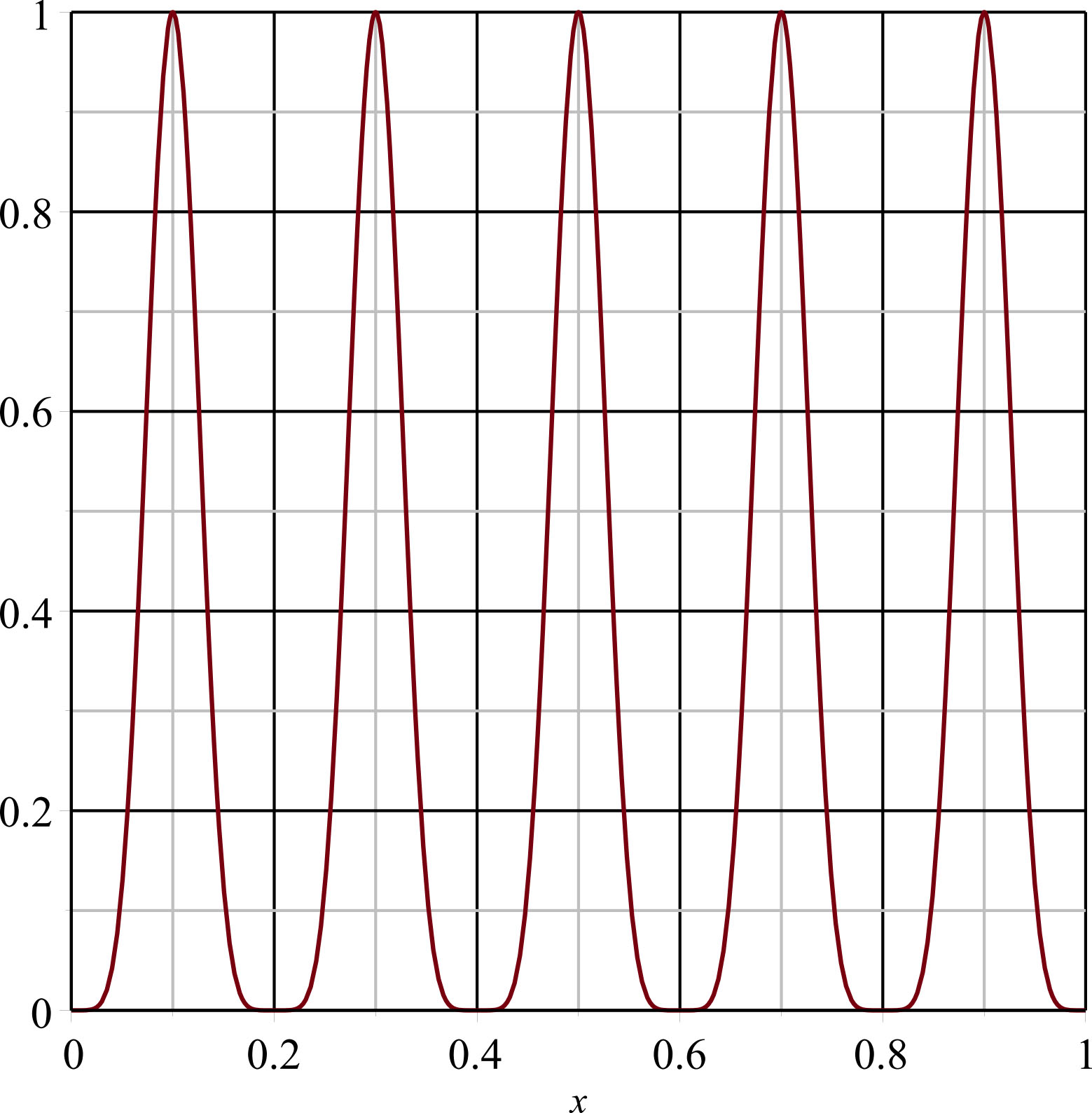

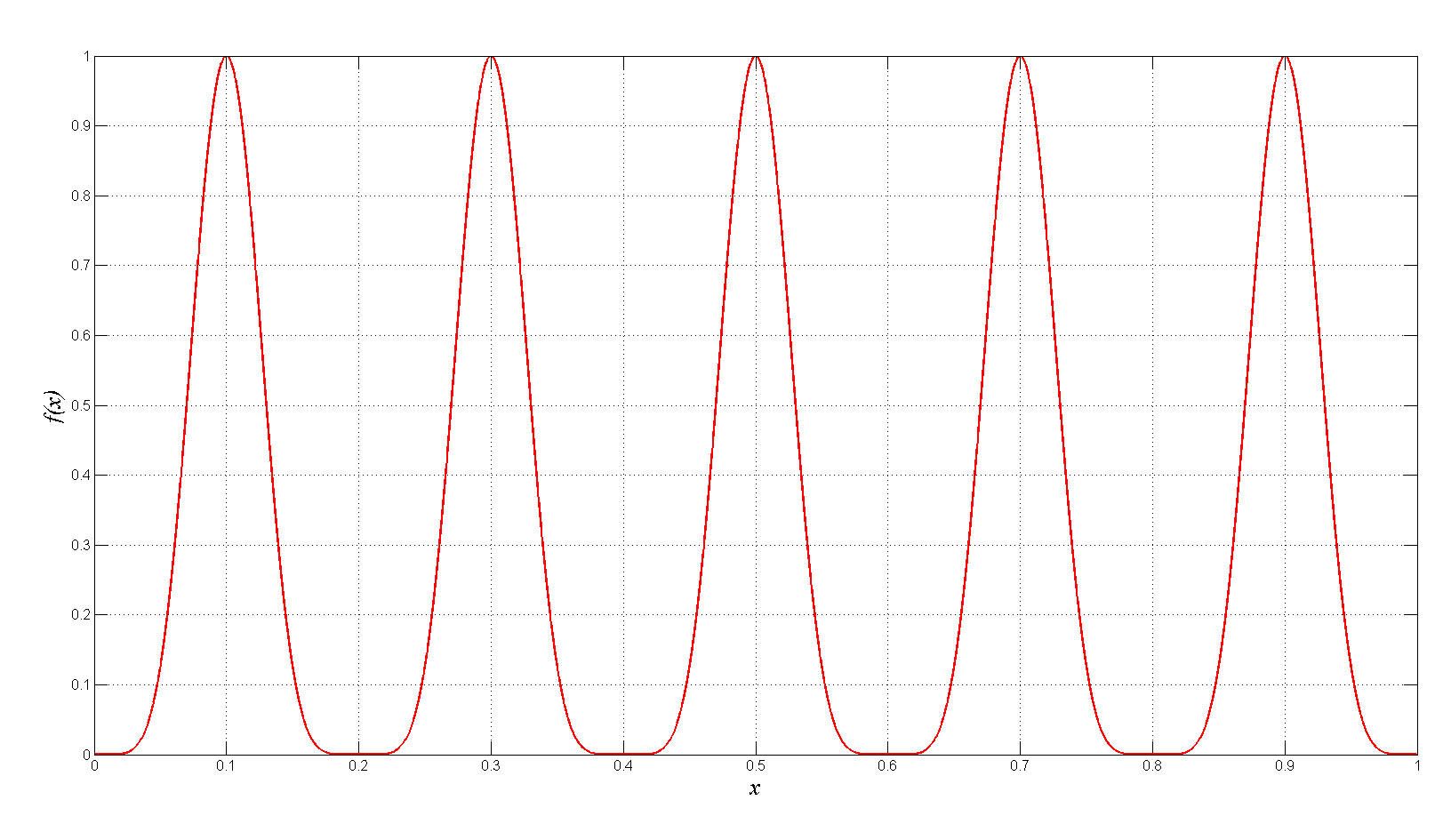

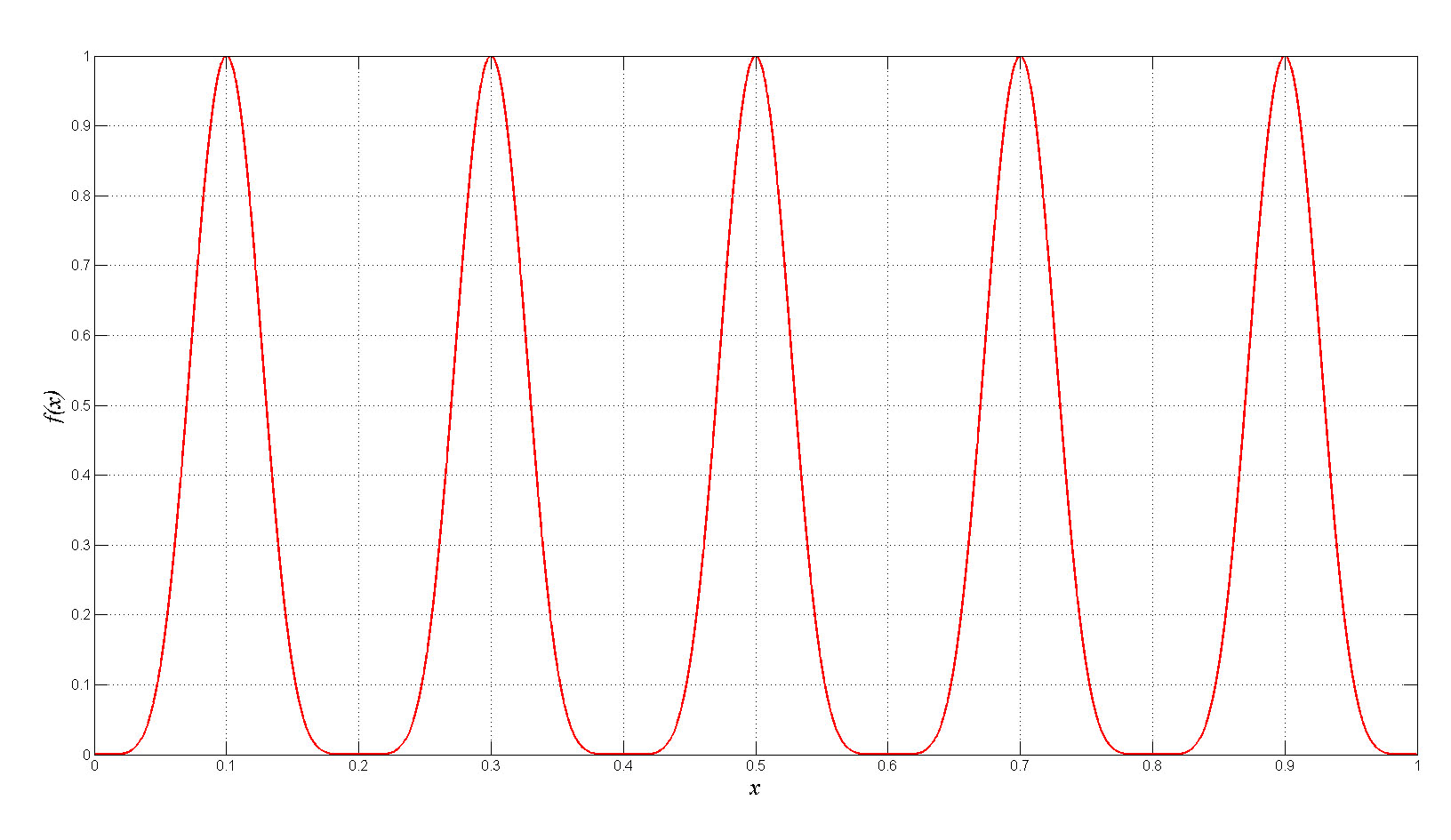

III. 2D-Plot:



IV. MATLAB M-File:

% Problem # N1-sen
% Range of initial points: 0 <= x <= 1
% Five global maximum: x={0.1,0.3,0.5,0.7,0.9}
% f(x)=1
% Coded by: Ali R. Alroomi | Last Update: 03 March 2015 | www.al-roomi.org

clear
clc
warning off

xmin=0;
xmax=1;
R=100000; % steps resolution
x=xmin:(xmax-xmin)/R:xmax;

for i=1:length(x)
    f(i)=sin(5*pi*x(i))^6;
end

plot(x,f,'r','LineWidth',2);grid;set(gca,'FontSize',12);
xlabel('x','FontName','Times','FontSize',20,'FontAngle','italic');
ylabel('f(x)','FontName','Times','FontSize',20,'FontAngle','italic')
;

Click here to download m-file



V. References:

[1] CMMSE, "Test Functions for Multi-Objective and Multi-Modal Global Optimization Problems," Jun. 2013, [Accessed July 08, 2015]. [Online]. Available: https://sites.google.com/site/gotestfunctions/home
[2] Ali R. Alroomi, "The Farm of Unconstrained Benchmark Functions," University of Bahrain, Electrical and Electronics Department, Bahrain, Oct. 2013. [Online]. Available: http://www.al-roomi.org/cv/publications
